The Role and Applications of Studding Outlet Flanges in Industries

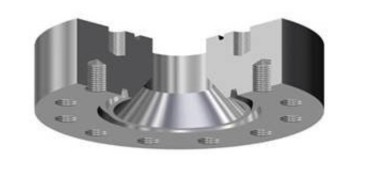

Studding Outlet Flanges are specialized components used to connect pipes in various industrial applications. They offer unique advantages and are available in different types, sizes, and materials. Let's explore what they are and their key characteristics.

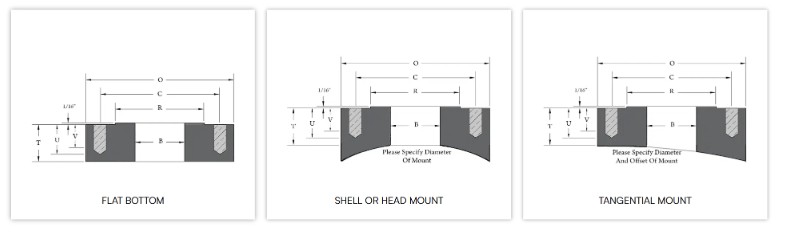

Types of Studding Outlet Flanges
Studding Outlet Flanges come in several distinct types, each tailored for specific purposes:

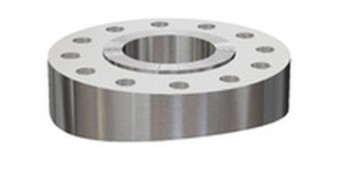

- Flat Bottom Type: The most commonly used type, featuring a flat bottom suitable for a wide range of applications.
- Shell Mount Type: Designed for external use, these flanges provide a secure connection on the outside of vessels or pipes.
- Head Mount Type: Tailored for attachment to the top of vessels or tanks, these flanges offer efficient connections.
- Alternate Radius Type: These flanges feature a different curvature, ideal for projects requiring a non-standard fit.
Size and Pressure Range
Studding Outlet Flanges are available in various sizes, spanning from smaller sizes like 1/2 inch to larger ones like 24 inches. This extensive range ensures suitability for both small-scale and large-scale applications. Additionally, they are offered in various pressure ratings, such as 150# to 2500#, to match specific pressure requirements.
Materials Used
Studding Outlet Flanges can be manufactured using a diverse range of materials, including:
- Carbon Steel
- Chrome Alloys
- Stainless Steel
- Aluminum
- Hastalloy
- Inconel
- Incolloy
- Monel
- Copper
- Duplex
- Titanium
The choice of material depends on project specifications, such as corrosion resistance, temperature tolerance, and pressure handling capabilities.
Applications of Studding Outlet Flanges
Studding Outlet Flanges find applications in various industries and scenarios, including:
- Petrochemical Industry: They are used to connect pipes in refineries and chemical plants, ensuring the safe transfer of chemicals and petroleum products.
- Water Treatment Facilities: Studding Outlet Flanges play a role in water treatment plants, connecting pipes for the purification and distribution of clean water.
- Oil and Gas Sector: In the oil and gas industry, these flanges are essential for connecting pipelines that transport crude oil and natural gas.
- Manufacturing and Fabrication: Studding Outlet Flanges are used in manufacturing processes, where they connect pipes in machinery and equipment.
- Construction: They find applications in construction projects, helping secure pipes in buildings, bridges, and infrastructure.
